FCB/FCC cable connection board

Prototyping board for LCD display interfaces with FCB/FCC connectors. 0.5 - 0.8 - 1.0 - 1.2 mm pad pitch

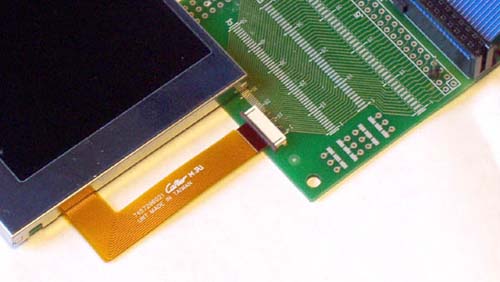

fcc / fcb prototype board

FEATURES

  • Easy conversion between FCC/FCB cables and standard ribbon cables.
  • Pads for mounting of FCC/FCB SMD connectors: 0.5 mm and 0.8 mm pad pitch, up to 50 poles.
    1.0 and 1.2 mm pad pitch, up to 40 poles.
  • Parallel connection with 50-pole standard ribbon cable connectors.
  • Two separate 26-pole connectors connected in parallel.
    Accepts both male and female connectors. Top-insertion or bottom-insertion.
  • Ideal for DB25 / ribbon cable connection to the PC LPT port.
    Can also be connected directly to the IOTester target connector.
  • Strap area between connector blocks. Ideal for converting between different signal sequences in cables.
  • Two small hole-areas for prototype components, for instance for mounting of LCD-related components: contrast regulation pot-meters, capacitors for LCD step-up converters, resistor ladders for LCD voltage generation, etc.
  • PCB size: 75 x 66 mm.

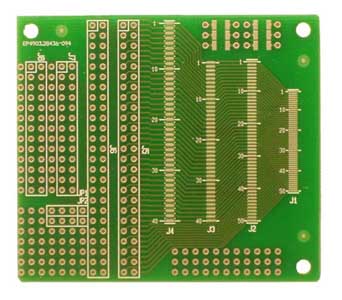

fcc / fcb prototype board



Block diagram

fcc / fcb connections
