How to make a Unicode middle eastern font and modified text

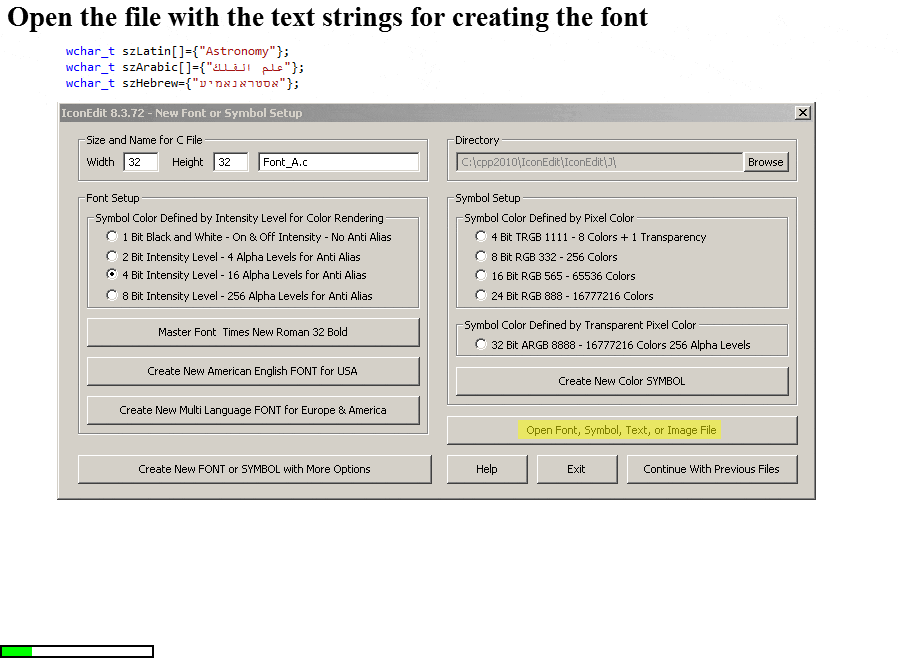

The demo will show you how to make a Unicode middle eastern font and modified text from C-strings in 5 simple steps.

Middle Eastern texts are written from right to left (RtL) but stored in C-strings left to right (RtL). IconEdit can find texts in C-strings, make fonts with presentation characters, and reverse the C-string texts for use on normal displays.

How to make a Unicode middle eastern font and modified text

How to make a Unicode middle eastern font and modified text

With this procedure you can make C-source code fonts for any right to left (RtL) language supported by Unicode and Windows.



How to make the same font and modified text from the commandline

Start IconEdit:

C:\IconEdit\IconEdit.exe

First set up the parameters for the master font.

Specify the height of the Windows master font with :32, this have to be the first parameter:

C:\IconEdit\IconEdit.exe :32

Set 4 bit per pixel for anti-alias with :Z4:

C:\IconEdit\IconEdit.exe :32 :Z4

Choose a Windows font with :T, the names should be entered exactly as they are in IconEdit font selector, typical values are Times_New_Roman:18 serifed font or Arial:34 sans serif font:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18

Choose between regular or bold with :W, here bold:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18 :Wb

Setup of master font is finished.

Read the text for the optimized font with :O, IconEdit finds the C_Strings and makes a font for the texts in the C-Strings:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18 :Wb :OC:\Text\Astronomy.cpp

Set output font name with :F, the name should be related to the input text:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18 :Wb :OC:\Text\Astronomy.cpp :FC:\Font\Astronomy_c.c

Set modified output text name with :J, the name should be related to the input text, and have the same type:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18 :Wb :OC:\Text\Astronomy.cpp :FC:\Font\Astronomy_cpp.c :JC:\Text\Astronomy__cpp.cpp

Set modified output text C-String type :U, use u for normal Unicode:

C:\IconEdit\IconEdit.exe :32 :Z4 :TTimes_New_Roman:18 :Wb :OC:\Text\Astronomy.cpp :FC:\Font\Astronomy_cpp.c :JC:\Text\Astronomy__cpp.cpp :Uu

This generates the text optimized font Astronomy_cpp.c and a modified text Astronomy__cpp.cpp
